Axis alignment of Columns and Rows in Flutter

22 Jun 2023

There are different ways to align widgets within a Column and a Row. Both widgets share similar properties, yet each differs based on their axes. In this tutorial, we will see the effects of applying different types of alignments to both Column and Row.

Column and Row refresher

A Column widget arranges its child widgets vertically, therefore defining its main axis as the Y-Axis. A Row on the other hand does it horizontally, which means that its main axis is the X-Axis. It is important to keep this in mind so we know which properties we should change to achieve a certain result.

Arranging the child widgets using mainAxisAlignment

The mainAxisAlignment modifies how the widgets are arranged vertically in a Column and horizontally in a Row. Changing this property affects either the position of the widgets along the main axis or the spacing between the child widgets.

Column(
  mainAxisAlignment: MainAxisAlignment.start, //<< Change this
  children :[...]
);

Row(
  mainAxisAlignment: MainAxisAlignment.start, //<< Change this
  children :[...]
);

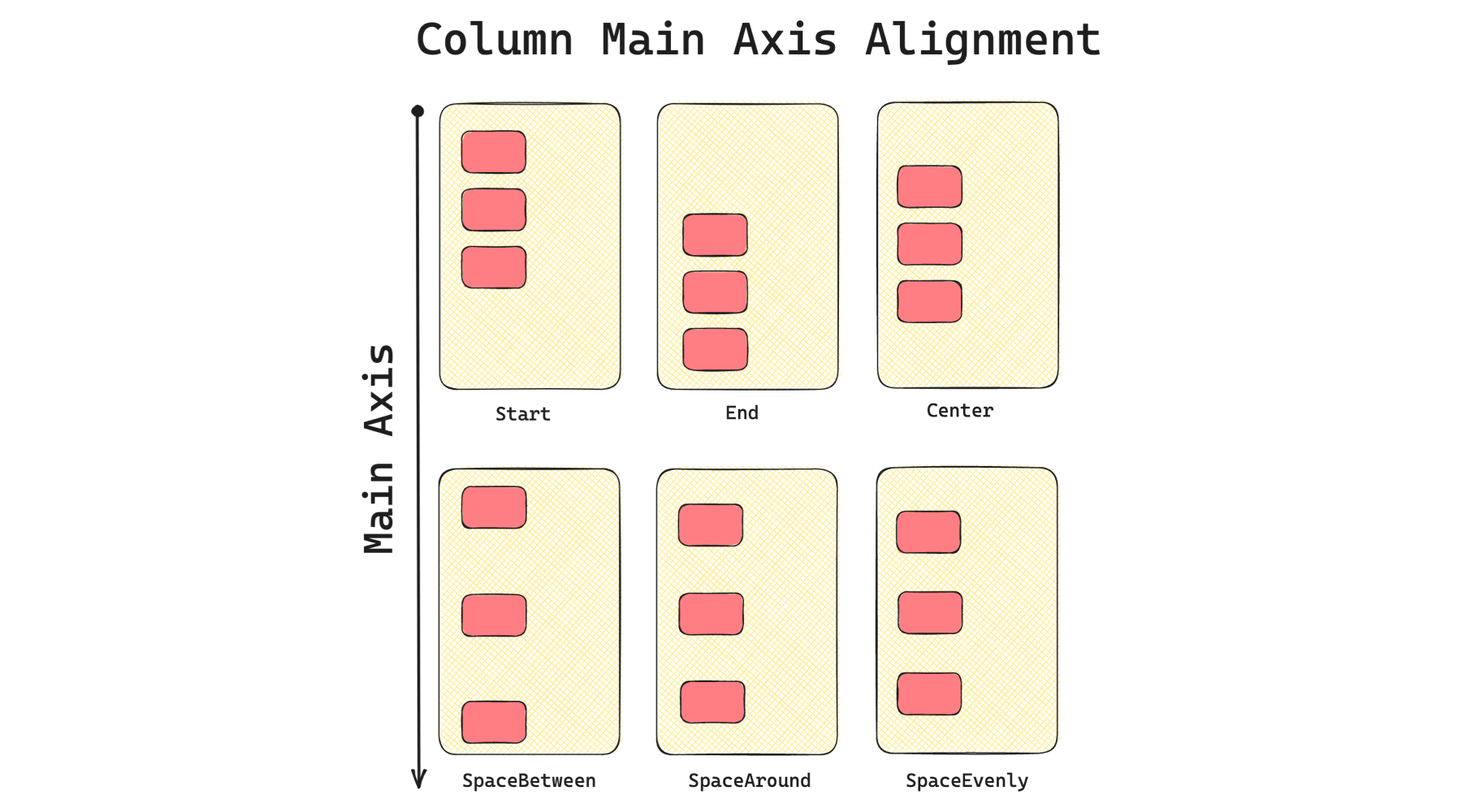

Look at the following illustrations to learn how each type of main axis alignment affects a Column.

column-main-axis-alignment

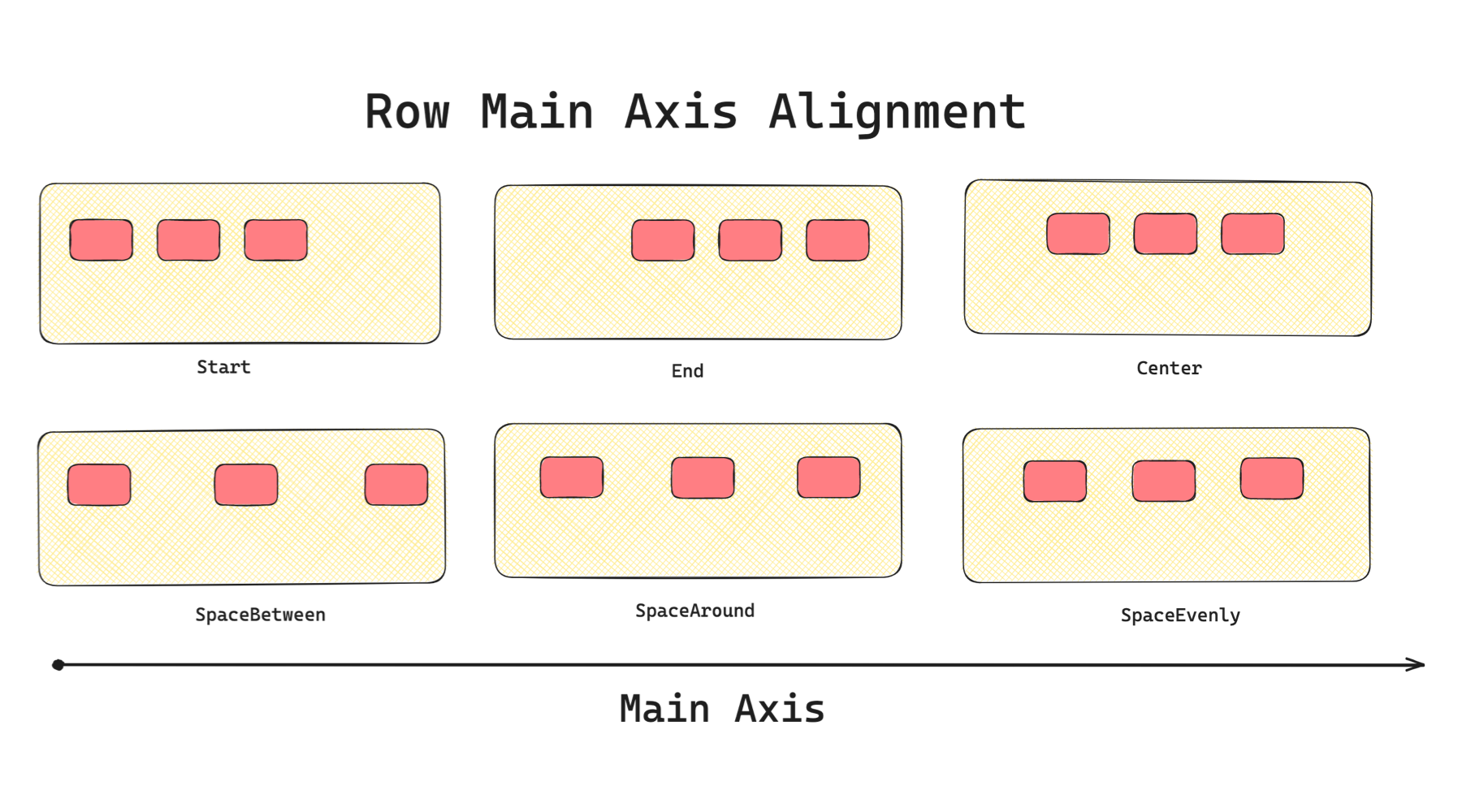

And now for a Row, changing the mainAxisAlignment arranges the child widgets like in the image below.

row-main-axis-alignment

For reference, the mainAxisAlignment properties are:

start: Move the widgets to the top for a Column, left for a Row
end: Move the widgets to the bottom for a Column, right for a Row
center: Layout the widgets to the centre
spaceBetween: Arrange the widgets with even spaces between them
spaceAround: Arrange widgets with even spaces between each widget, with half of that space above the top widget and below the bottom widget
spaceEvenly: Arrange the widgets with equal spaces on both the top and bottom of each widget

What about crossAxisAlignment?

The crossAxisAlignment property arranges the widget opposite of the main axis called the cross axis.

Column(
  crossAxisAlignment: CrossAxisAlignment.start, //<< Change this
  children :[...]
);

Row(
  crossAxisAlignment: CrossAxisAlignment.start, //<< Change this
  children :[...]
);

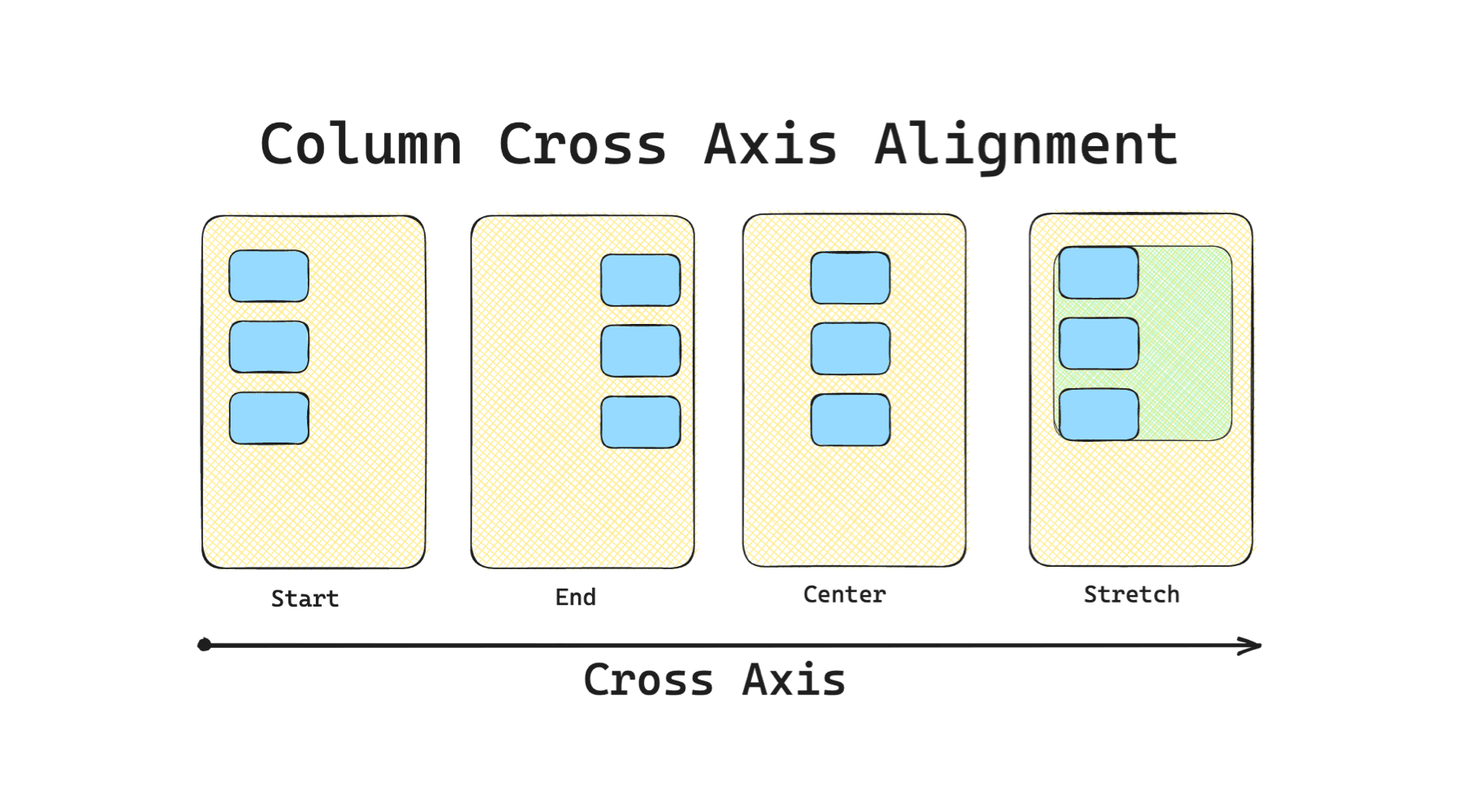

Have a look at the different crossAxisAlignment values and how child widgets would look inside a Column.

column-cross-axis-alignment

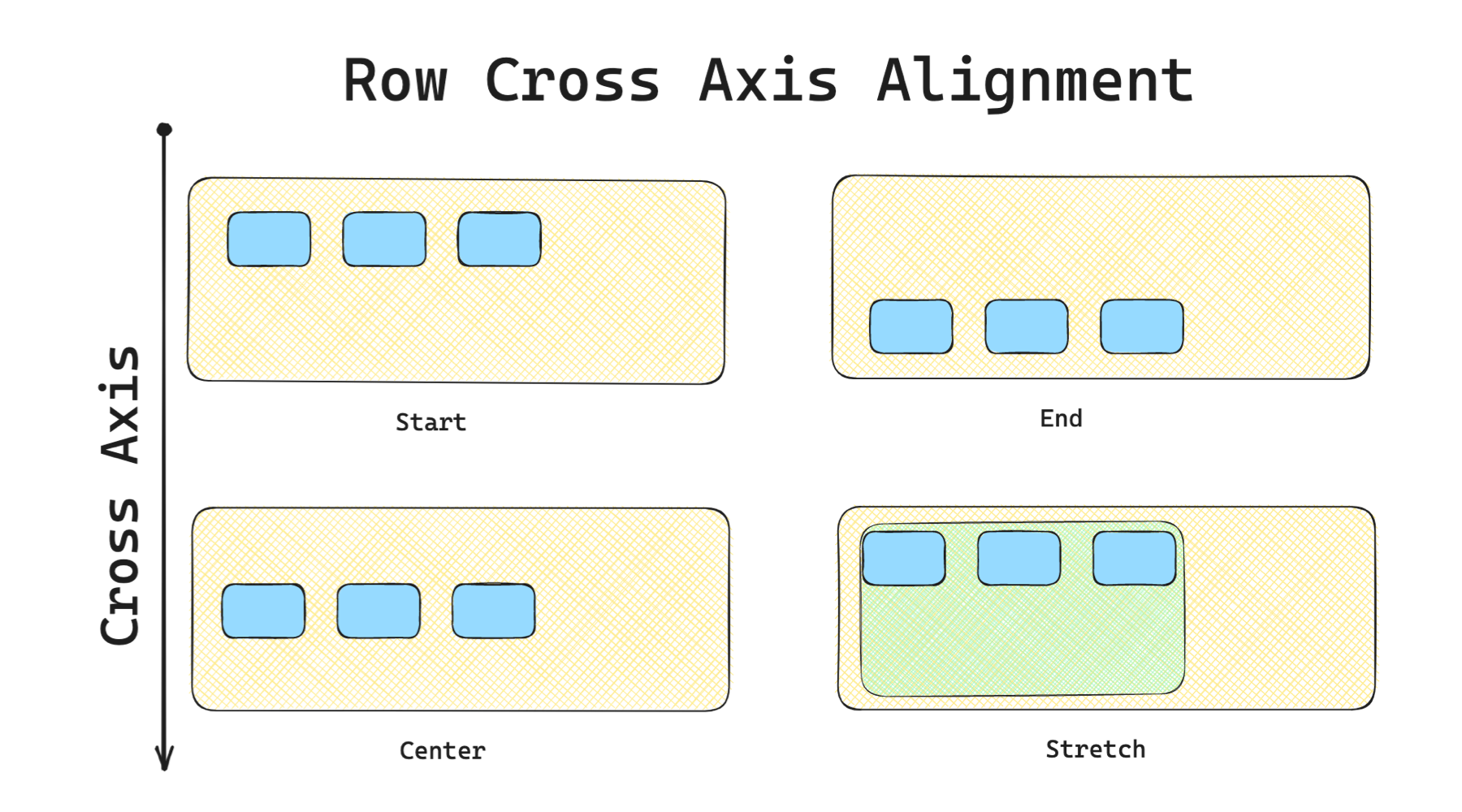

For crossAxisAlignment in a Row, the child widget arrangement will be along the vertical axis.

row-cross-axis-alignment

For reference, here are the crossAxisAlignment values:

start: Move the widgets to the top for a Row, left for a Column
end: Move the widgets to the bottom for a Row, right for a Column
center: Layout the widgets to the centre of the cross axis
stretch: Fills up all available extending along the cross axis
baseline: Move the children along the cross-axis such that their baselines match. It will only work if child widgets have baseline properties

Using the CrossAxisAlignment.stretch would throw a BoxConstraints error if the parent widget of the Row or Column does not have a constrained width e.g. parent widgets are Row or Column as well.

Summary

The mainAxisAlignment and crossAxisAlignment are the main properties to arrange the child widgets of Columns and Rows. Just remember that Column has a vertical main axis and Row has a horizontal main axis. The layouts' cross axes will be the opposite of their main axes.
